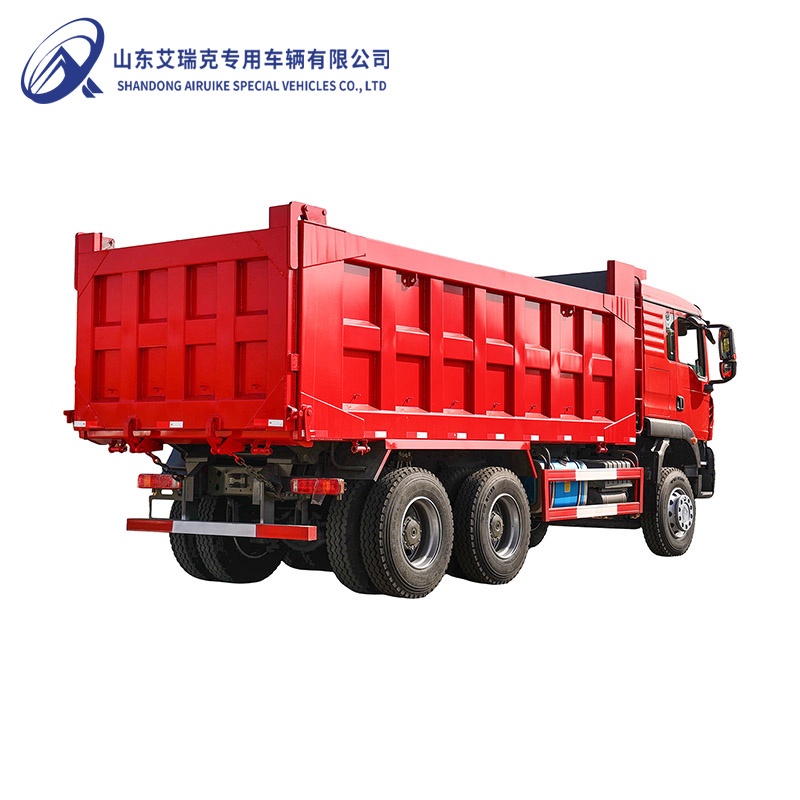

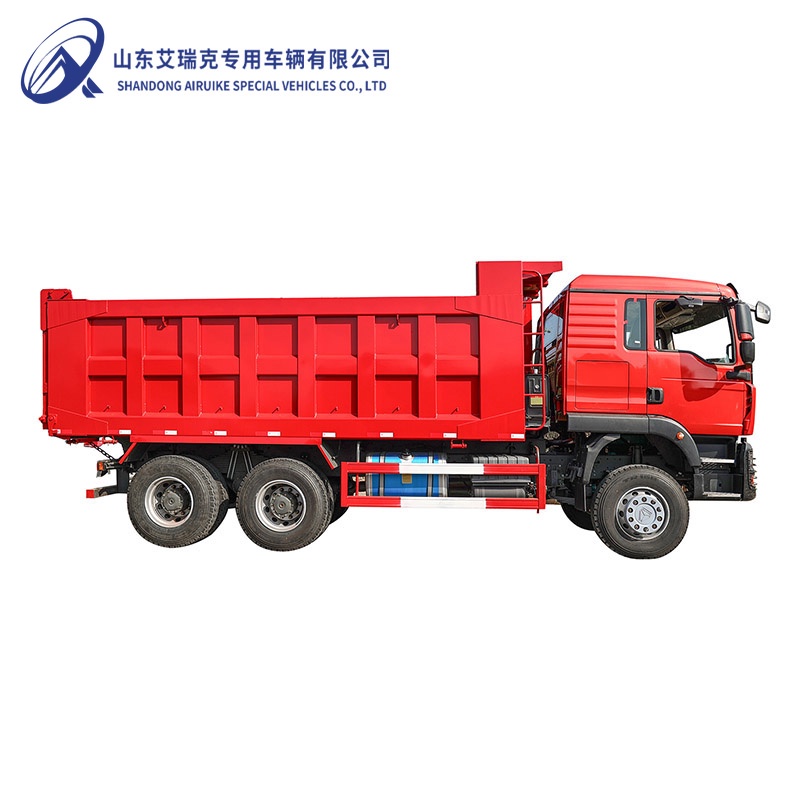

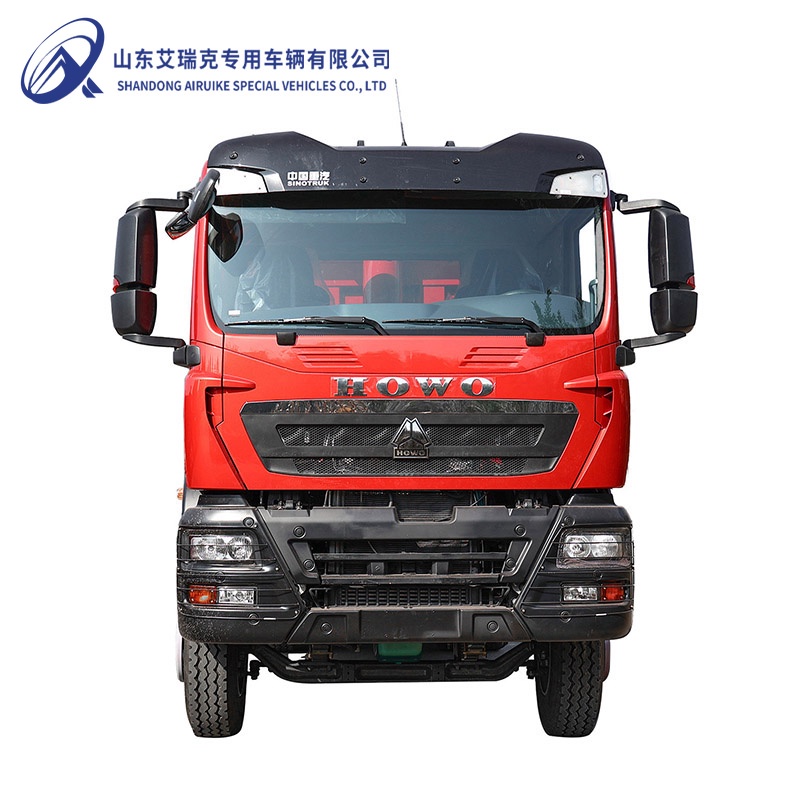

HOWO TX 6X4 Dump Truck 20 Ton 400HP RHD/LHD Tipper Truck

HOWO TX 6X4 Dump Truck 20 Ton 400HP RHD/LHD Tipper Truck
Model:HOWO TX
Power:Diesel
Drive Wheel:6*4/8*4
Condition:New/Used
Emission Standard: Euro 2 Euro 3 Euro 4 etc
Color:Red, White, Blue, Yellow, Customizable
admin@admin.com
+86 13000000000
Contact Us

  Product Description

Howo dump truck are the ideal choice of clients with low budget but have requirements of the practicality of the truck. The howo dump trucks can be used for transporting stones,sands,minerals etc,which have the same functions of new dump trucks.

Our used Howo dump trucks is much cheaper than new one.Production date of the tractor truck ranges from year of 2014-2016,emission standard from EURO II and EURO III,horse power ranges from 336-420hp,running mileage from 50000-70000 kilo meters.

ZZ3257N3847A
BodyCarriage Internal Dimensions(mm)5600x2300x1500
Cubage (m3)19.3
Steel thickness of Carriage(mm)Floor:8mm/Side:6mm
SteelQ235
Hydraulic Lift of CarriageMiddle Lift
Weight in kgKerb weight (Kg)12270
Gross vehicle weight (Kg) 30000
Dimension(mm)
Dimensions(mm)Length(mm)8245
Width(mm)2550
Height(mm)3450
Wheel base (mm)3800+1350
PerformanceMaximum driving speed (km/h)  75
Fuel consumption  (1/100 km)38
CabModelSINOTRUK HW76 cab
Single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
EngineModelWD615.47(Euro 2)
Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Horsepower371
Maximum output Kw/r/min273/2200
Maximum torque N.m/r/min1460/1300-1600
Bore x Stroke126x130mm
Valve2
Displacement9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake SystemService brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & TyresRims:10 hole-steel ;Tyres:13R22.5 tubeless tyre with one spare tyre
ElectricsOperating voltage:24V,negative grounded
Starter:24V,7.5 Kw
Alternator:3-phase,28V,1500 W
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil TankSquare type-300L Aluminum alloy fuel tank

微信图片_20260119180228_80_176

微信图片_20260119180225_79_176

微信图片_20260202181622_183_176


  Product Parameters

SINOTRUK has fully upgraded the HOWO model based on its more than ten years of successful operation experience. Based on its existing advantages and characteristics, as well as by combining, upgrading and reforming MAN-oriented technology and SINOTRUK technology, the new HOWO product series TX series model will be put on the market in 2020.


HOWO TX dump truck series is specially designed for Mining and Construction. This model is known for its fuel efficiency and loading capability (up to 30 tons or 20-30 cubic meters).


The HOWO TX dump truck offers two drive configurations: 8×4 and 6×4, equipped with powerful engines ranging from 290 to 430 horsepower. The HOWO TX 8×4 dump truck model is ideal for large-scale projects and heavy-duty transport, with a load capacity of up to 40 tons, while the 6×4 model is more flexible, suited for medium-load transport with a capacity of up to 30 tons.


6x4 Dump Truck
8x4 Dump Truck
Dimension(Lx W x H)
8450 X 2496 X 3850mm
10750x2496x3800
Dump box(L x W x H)
5600x2300x1600mm
7800x2300x1700mm
Curb weight(kg)
12270
15420
Loading Weight(t)
25-40ton
40-60ton
Overhang(front/rear) (mm)
1500/2095
1500/2295
Engine Model
Diesel
Model
WD615.47 ,water-cooled, four strokes, 6 cylinders in line with water cooling , directly injection
Transmission Model
HW19710 10 forwards and 2 reverse
Cargo thickness(mm)
Bottom:8mm, Side:6mm
Driving Style
Left Hand Driving, Right Hand Driving
Emission
EURO II(EURO 3/4/5)
Tyre
12.00R20 radial tires, 12+1pcs


  Product Packaging and Shipping

Packing & Delivery


Packing :Nude packing after painting wax or according to your requirement.

Delivery(shipped by bulk carrier or by container,according to the size):

1.By Bulk Shipment,the truck is placed on the deck.

2.By Ro Ro Shipment,the truck is placed in the cabin.

3.By Flat Rack Container.

微信图片_20260326133842_1928_18

微信图片_20260326133831_1925_18


  FAQ

What is your minimum order quantity (MOQ)?



A: Our MOQ is 1 unit. We welcome both trial orders and bulk orders. We can offer a better discount for large bulk orders.



What is your terms of shipment?



A: Generally, we ship our truck by ro-ro ship, bulk cargo vessel, container etc.



What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



What is your terms of delivery?



A: EXW, FOB, CFR, CIF



How about your delivery time?



A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Do you have stock available?



A: Some models are in stock for fast delivery. For other models, we need to arrange production.



Do you test all your goods before delivery?



A: Yes, we have 100% test before delivery.



Do you offer customized products or colors?



A: Yes, we accept customization on specifications, colors, logos and configurations according to your requirements.



Can you provide the certificate of origin / inspection certificate?



Yes, we can provide Certificate of Origin, inspection certificate, and other necessary certificates for customs clearance as required.

Can we visit your factory?



A: Warmly welcome! Please let us know your schedule in advance and we will arrange reception for you.



Can you help with customs clearance and documents?



A: Yes, we will prepare all export documents including invoice, packing list, bill of lading, certificate etc.



Is there a warranty for your products?



A: Yes, we provide a one year warranty for the main parts. We will supply spare parts and technical support during the warranty period.



How do you make our business long-term and good relationship?



We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
