Condition:New/Used
Driving steering:LHD or RHD
Color:Red, White, Blue, Yellow, Customizable
Navigation
◉ Product Description
Designed for global markets, our truck cranes deliver reliable 2-20 ton lifting with robust high-strength steel construction. The rigid straight boom ensures stability, while precision hydraulics enable smooth operation in construction, logistics, and material handling. All units are undergo strict quality checks, and offer customizable features (extensions, winches).
Ready-to-ship stock guarantees swift global delivery. Backed by 24/7 support and warranties, these cranes provide cost-efficient, durable solutions for diverse projects.

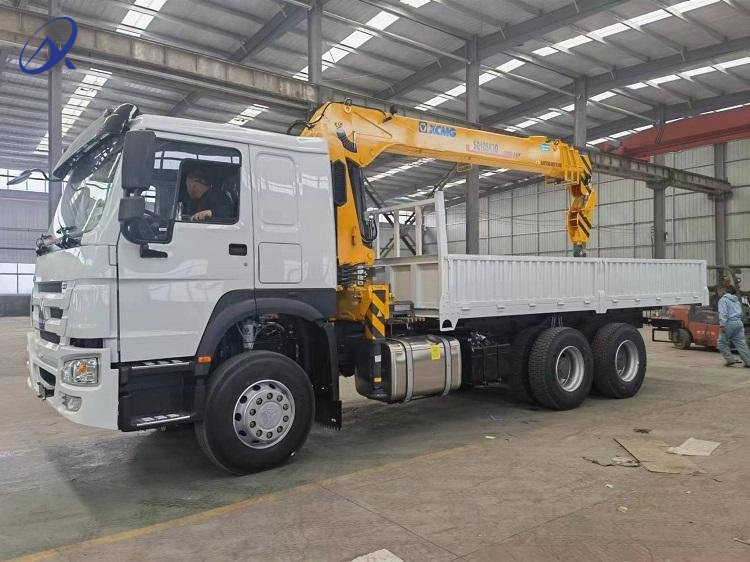

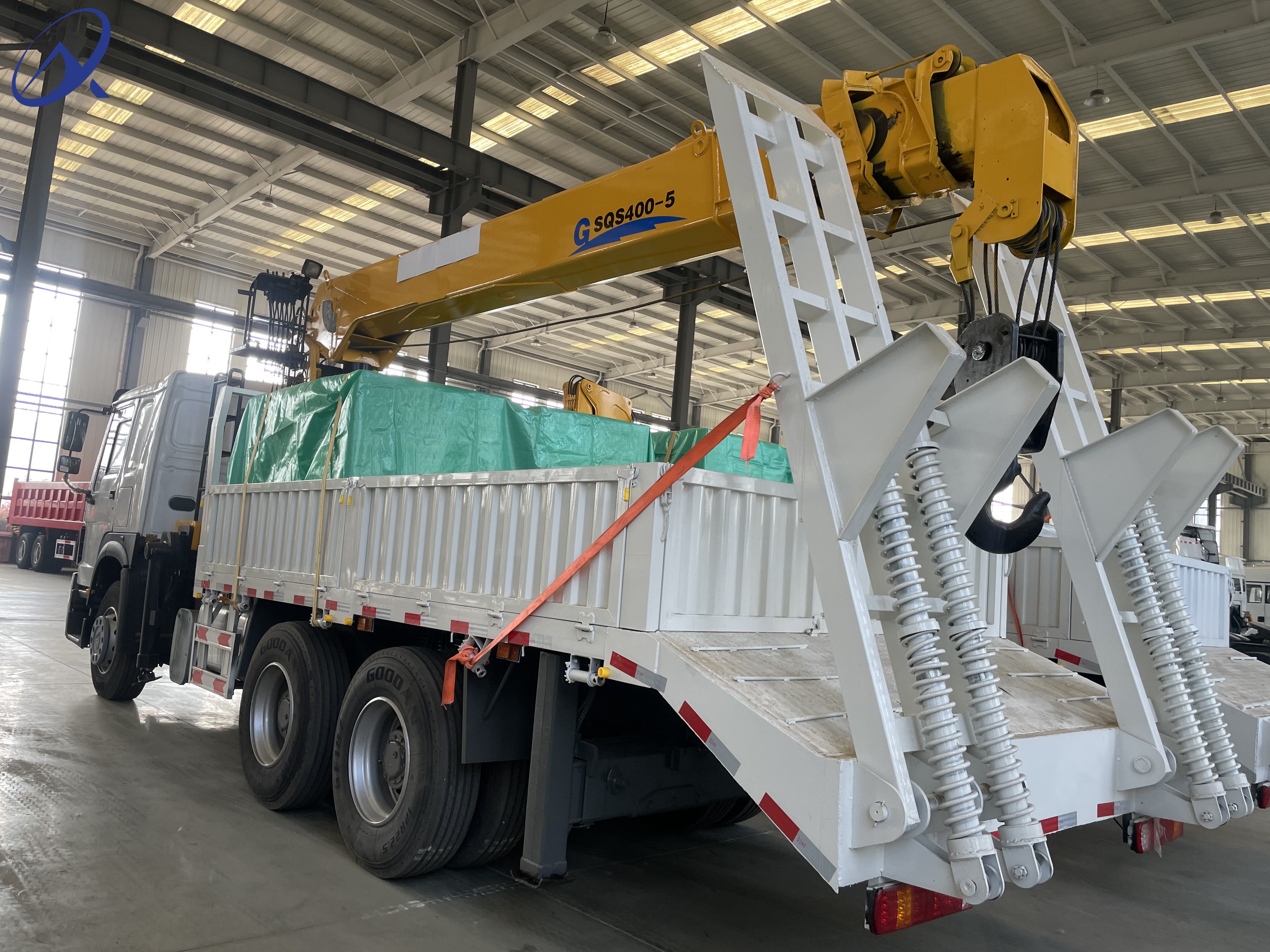

Truck with Crane (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
Telescopic straight boom crane: 2 ton,3.2 ton,4 ton,5 ton,6.3 ton,8 ton,10 ton,12 ton, 14 ton, 16 ton,20 ton
Knuckle folding boom crane: 1 ton ,2 ton,3.2 ton,4 ton,5 ton,6.3 ton,8 ton ,10 ton,12 ton, 14 ton,16 ton,20 ton ,25 ton,30 ton,35 ton,40 ton ,45 ton,50 ton,55 ton,90 ton, 130 ton,160 ton,etc
The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system.and can be installed the customized mechanical gripper to grab the heavy brick and wood ,or the basket to send the people to the higher place, multiple functions.
In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The crane can 360 degree continuously rotate
◉ Product Parameters
Components and uses of the truck crane
1, the boom
The boom is telescopic through a hydraulic cylinder, and the hook pulley is suspended from the top of the boom.
2, load indicator
The load indicator indicates the total rated load of the vehicle chassis under no-load conditions for various boom lengths and boom angles.
3, hoisting mechanism
The hoisting mechanism is driven by a hydraulic motor and lifts or lowers the weight through a wire rope.
4, column
The column supports the boom, the hoisting mechanism and the luffing cylinder and is driven by the slewing system.
5, the swing system
The slewing system generally includes a hydraulic motor, a hydraulic reduction gear box, etc., to rotate the column.
6, the frame base
The pedestal is mounted directly on the chassis of the car, supporting the uprights and outriggers.
7, hydraulic tank
The hydraulic oil tank accommodates the hydraulic oil dedicated to the truck crane and functions as a heat sink and a sedimentation filter.
8, the leg joystick
The leg lever is used to control the telescopic movement of the left and right leg cylinders.
9, the leg cylinder
During the operation of the crane, in order to stabilize the vehicle, the outrigger cylinder is extended to the ground to improve the operational stability of the truck crane.
10, the speaker
For lifting operations, alert personnel within the scope of the work.
11, accelerator joystick
The accelerator joystick is used to adjust the speed and output power of the engine to meet the hoisting needs.
12, swing joystick
The slewing lever is used to control the slewing mechanism to make the column and the boom rotate left and right.
13, the variable amplitude joystick
The variable amplitude joystick is used to control the telescopic movement of the variable amplitude cylinder to achieve the height control of the boom.
14, hoisting joystick
The hoisting lever is used to control the hoisting mechanism (lifting or lowering the weight).
15, hoisting joystick
The telescopic joystick is used to control the movement of the telescopic cylinder, and the telescopic pulley frame is used for telescopic control of the boom.
16, PTO
The PTO rod (power lever) is used to control the power output and cutoff of the engine to the truck crane.
17, variable amplitude cylinder
The slewing cylinder is an actuator that moves the boom up or down.

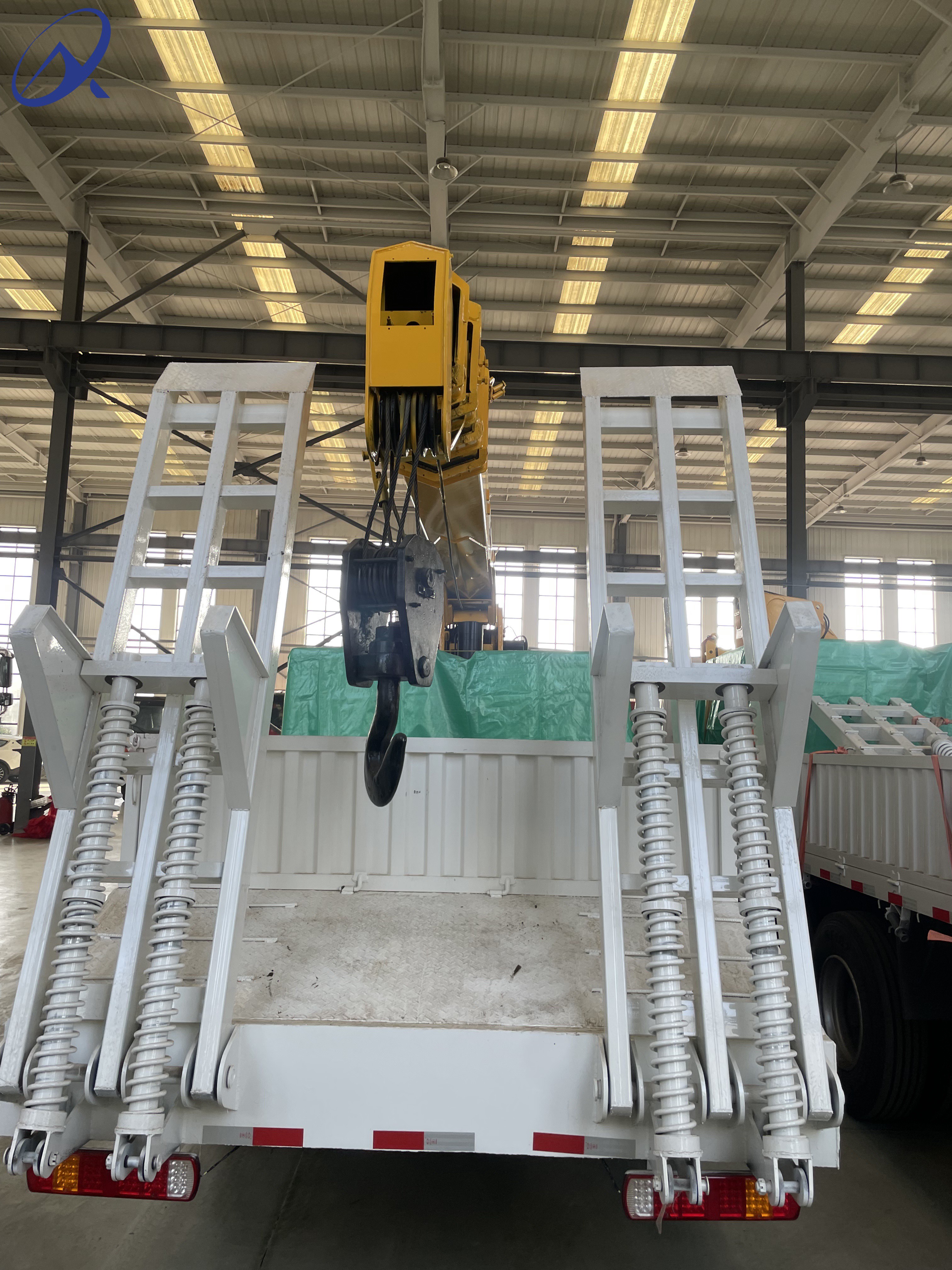

18, hook pulley block
By increasing or decreasing the upper pulley, the conversion of the winding magnification is realized, and the heavy object is directly hooked.
19, wire rope
The output torque of the reel is transmitted to the hook.
20, over the volume alarm device
When the hook pulley approaches the top of the boom, the over-the-counter alarm automatically signals an alarm. This prevents the wire rope from overwinding. The most advanced over-rolling alarm device is the solar wireless anti-winding device equipped with the standard crane such as Hongchang Tianma.
21, the rear leg
Installed at the rear of the rear axle of the vehicle and connected to the girders to further improve the stability of the vehicle
◉ Product Packaging and Shipping

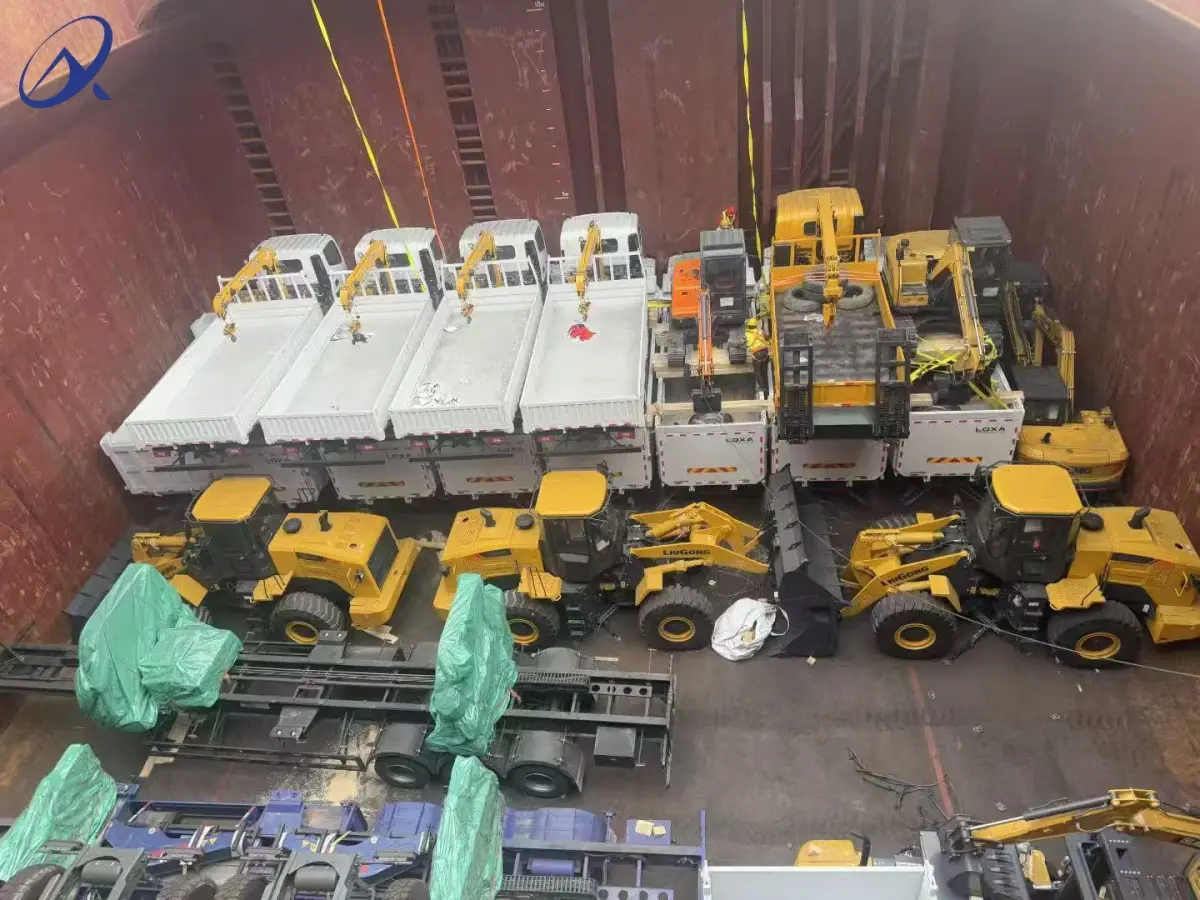

Roll on/roll off transportation is one of the most commonly used methods for truck sea freight. This transportation method uses roll on/roll off ships, and vehicles can directly enter and exit the cabin through the ramp. Roll on/roll off ships are equipped with dedicated vehicle decks and ramp channels, eliminating the need for complex lifting equipment and greatly improving loading and unloading efficiency. During transportation, the truck driver can directly drive the vehicle to the designated position on the roll on/roll off ship and use fastening devices such as straps and wire ropes to fix the vehicle on the deck to prevent it from moving during transportation. After arriving at the destination port, drive the vehicle directly off the ship. Roll on/roll off transportation is suitable for large-scale truck transportation, especially for new car exports and used car imports, and can quickly achieve cross-border transfer of vehicles.
◉ FAQ
What is your minimum order quantity (MOQ)?
A: Our MOQ is 1 unit. We welcome both trial orders and bulk orders. We can offer a better discount for large bulk orders.
What is your terms of shipment?
A: Generally, we ship our truck by ro-ro ship, bulk cargo vessel, container etc.
What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
A: EXW, FOB, CFR, CIF
How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do you have stock available?
A: Some models are in stock for fast delivery. For other models, we need to arrange production.
Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Do you offer customized products or colors?
A: Yes, we accept customization on specifications, colors, logos and configurations according to your requirements.
Can you provide the certificate of origin / inspection certificate?
Yes, we can provide Certificate of Origin, inspection certificate, and other necessary certificates for customs clearance as required.
Can we visit your factory?
A: Warmly welcome! Please let us know your schedule in advance and we will arrange reception for you.
Can you help with customs clearance and documents?
A: Yes, we will prepare all export documents including invoice, packing list, bill of lading, certificate etc.
Is there a warranty for your products?
A: Yes, we provide a one year warranty for the main parts. We will supply spare parts and technical support during the warranty period.
How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
